High Performance DC Diaphragm low flow hearth and home furnace pump

FOB Reference Price:Get Latest Price
US $91-132 / Piece | 50 Piece/Pieces (Min. Order)
Supply Ability:
100000 Piece/Pieces per Month
Port:
Shanghai, Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
TOPSFLO
Model Number:
TF30B-C
Theory:
liquid vacuum,suction,self-priming,pressurize
Structure:
Diaphragm Pump
Usage:
a variety of liquid
Power:
Electric
Standard or Nonstandard:
Standard,customized
Fuel:
DC power, Battery
Pressure:
vacuum 65kpa,water head 10M
Application:
Gas detection devices, Sewage disposal,Patient Monitoring
Certificate:
CE,RoHS, ISO9001
Features:
Oil-free,Compact size, Corrosionresistant, Maintenance Free, Long life
More feature:
light Weight, Low noise level vibration,High efficiency
Motor:
DC brush, brushless, coreless brushless
Voltage:
6 ,12 ,24v
materials:
pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM
working way:
Continuous or intermittent work
flow rate (L/min):
water: 0.35 gas: 4.5
Lifetime:
15000hour,10000hour,3000hour
More Application:
Ink printing Bil-chemical analyzer,Electrolyte,Fireplace,Lab equipment
Packaging & Delivery
Packaging Details
Inner box in firm carton,protected by pallets;Stand export packing,or OEM packing.

High Performance DC Diaphragm low flow hearth and home furnace pump



TOPSFLO has rich experience in micro field, especially for fireplace, we have many cooperated clients in this industry use our pumps very well.





• Super low noise

As the indoor replace, super low noise is very important, TOPSFLO pumps work very silent, the clients have very satisfying feedbacks.

• 20- 350ml/min small & stable flow

As a key request of replace, the flow rate should be very small, we can offer 20-350ml/min,small ow diaphragm pumps; what's more, with high overall performance, the pump's ow rate can keep very stable, which is vitally related with the smooth & comfortable ame, the clients can enjoy themselves very well.

• Endurable material

The pump are made with high quality EPDM membrane & valve, which can pump >95% bio-ethanol very well.

• Compact size

With compact/tiny size, the pump easier to equip into the replace & makes the replace look delicate/beautiful.

• Long lifetime

Made by advanced brushless coreless motor, the pump's total accumulated lifetime above 15,000 hours, it is much more resistant compared with market's normal types. (3000hours high performance brush pump & 10,000 hours brushless pump are also available).

ModelTF30B-C/DTF30B-HTF30B-A
Pump headNylon Nylon Nylon
MembraneEPDM/PTFE EPDM/PTFE EPDM/PTFE
ValveEPDM/FPM EPDM/FPM EPDM/FPM
MotorDC coreless motor DC brushless motor DC brush motor
Lifetime>15000hours >10000hours >3000hours
Voltage(v)6/12/2412/246/12/24
Flow rate(ml/min)50~35020~35050~350
Max head ≥10M ≥10M ≥10M
Low noise<50dB  <50dB <50dB
Size(mm)80*31*6065*54*7580*31*60
Light weight(g)250350220

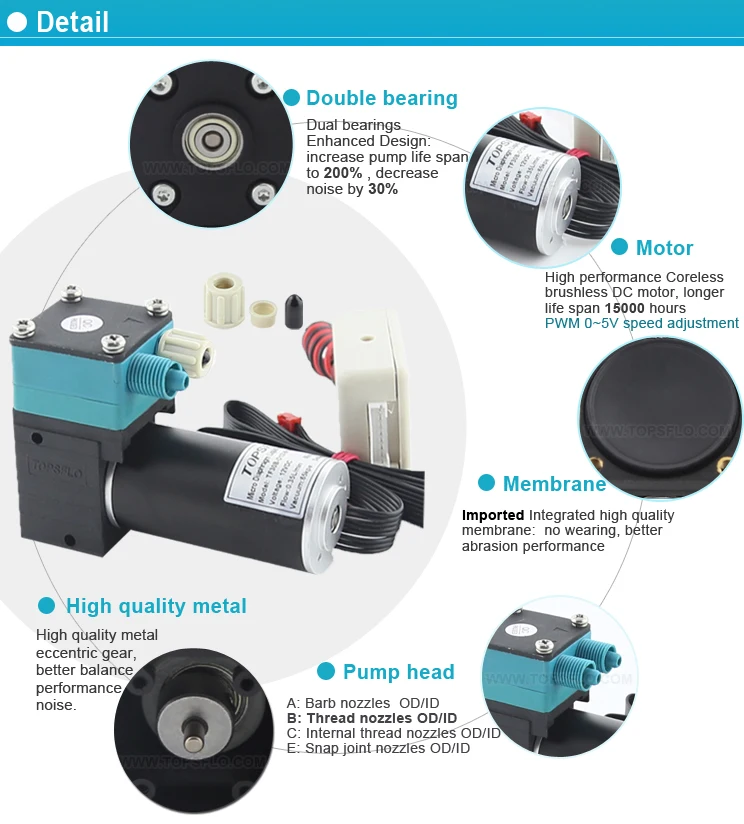

Double bearing
Dual bearings Enhanced Design: increase pump life span to 200% , decrease noise by 30%
Membrane
Imported Integrated high quality membrane:  no wearing, better abrasion performance
High quality metal
High quality metal eccentric gear, better balance performance, lower noise.
Pump head

A: Barb nozzles OD/ID

B: Thread nozzles OD/ID

C: Internal thread nozzles OD/ID

E: Snap joint nozzles OD/ID

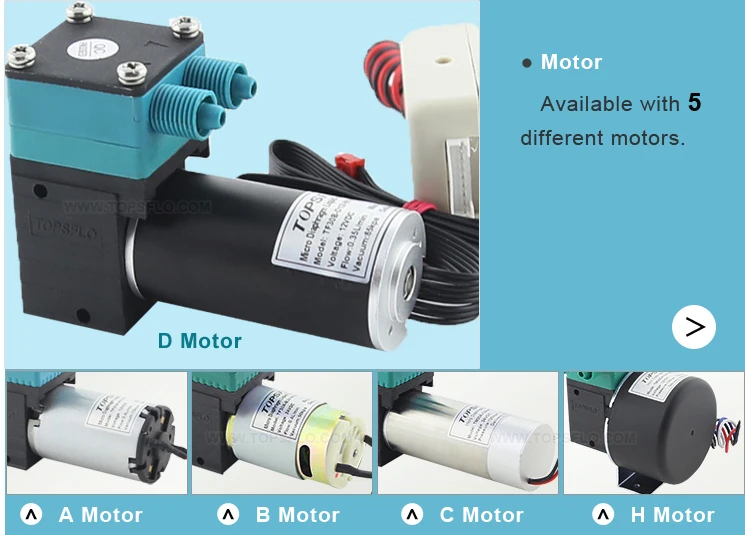

A- Premium duty brush DC motor

lifetime 3,000hours,longer endurance lifetime than other normal DC membrane pump

B- Economical brush DC motor

lifetime:1,500hours

C- Coreless Brushless DC Motor

A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours

D- Coreless Brushless DC motor

With outer controller With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work

H- Brushless DC Motor

Long lifetime 10000hour
